|Place of Origin:||China|
|Minimum Order Quantity:||1SET|
|Packaging Details:||CARTON PACKAGE|
|Delivery Time:||In a month|
|Payment Terms:||any payments are received|
|Features:||U-shaped Arm||Properties:||Medical X-ray Equipments & Accessories|
|X-ray Machine:||Digital Radiography||Type Of Detector:||CCD|
|Dual- Focus:||Small Focus:0.6, Large Focus: 1.3||Photography Current:||200mA|

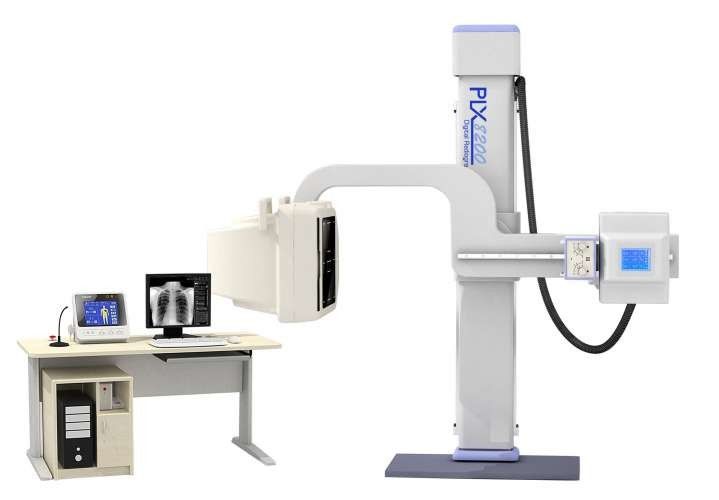

DR Portable Digital Radiography System , Mammogrpahy X-RAY System
DR x-ray machine
1.Power Output 25kw
2.Power Output 25kw
3.Tube Voltage 40~125kV
4.Tube Current 200mA
This digital x ray machine is an advanced x ray machine .
This x ray machine is a kind of high frequency digital x ray medical equipment .
Usage of mobile DR system
Applied to the chest, skull, spine and limbs and human other parts of the X-ray digital imaging system .
Technical parameters of mobile DR system
High Frequency X-ray Machine:
|Type of detector||CCD|
|Dual- focus||Small focus:0.6, Large focus: 1.3|
|other features||U-shaped arm|
Features of DR system
1.The electric lift and rotatable newly designed U-shaped frame can meet the photographic requirements of different standing and lying positions. The U-shaped design can make the operation much more convenient and flexible.
2.The world leading digital CCD detector can help you get the high-definition images.
3.The leading domestic high power compact high frequency X-ray generator and high frequency power inverter makes the machine much more compact and more convenient without the extra high-voltage generator and cable.
4.Newly designed photographic bed used specially for the U-shaped arm X-ray machine. The bed floating and electromagnetic lock design makes it convenient for the accurate position of the lying patient.
5.Specially designed working station for DR adopts all-digital intelligent touchable LCD control system which is graphic and real color. This system makes the operation easier and more conveniently.
6.Apply different photographic parameters according to the human characteristics, such as multi-site, multi-position, muti-body shape, adult and children etc. The parameters can be modified and stored at will and make the operation more convenient.
7.The high quality high frequency high-voltage X-ray generator and high frequency power inverter can produce high-definition and good contrast images by high quality radiation and low dose.
8.The application of the kV and mA digital closed-loop control technology and the real time control of the microprocessor ensure the accuracy and repeatability of the radiology dose.
9.The multiple automatic protection features and fault tips ensure safety during the operation process.
No. 1 Brief introduction:
Feature & Advantages of Medical radiography system
1. With ultrahin and high resolution flat panel detector, instaneous image can be caught easily.
2. Advanced and flexible UC Arm can rotate in full angle and move smoothly.
3. Providing comprehensive solution to single work station and complete PACS system.
