Thermal Imaging Equipment Printer Mechanisms

Thermal Imaging Equipment Printer Mechanisms
Features Gallery Product Description Request A Quote
High Light:

dry thermal printers


medical thermal printer


Mechanisms Thermal Imaging Equipment

Basic Infomation
Place of Origin: china
Brand Name: KONIDA
Payment & Shipping Terms
Delivery Time: in one week
Payment Terms: T/T in advance
Product Description



disk capacity 320 GB

control panel light background LCD display

100 sheets per supply tray

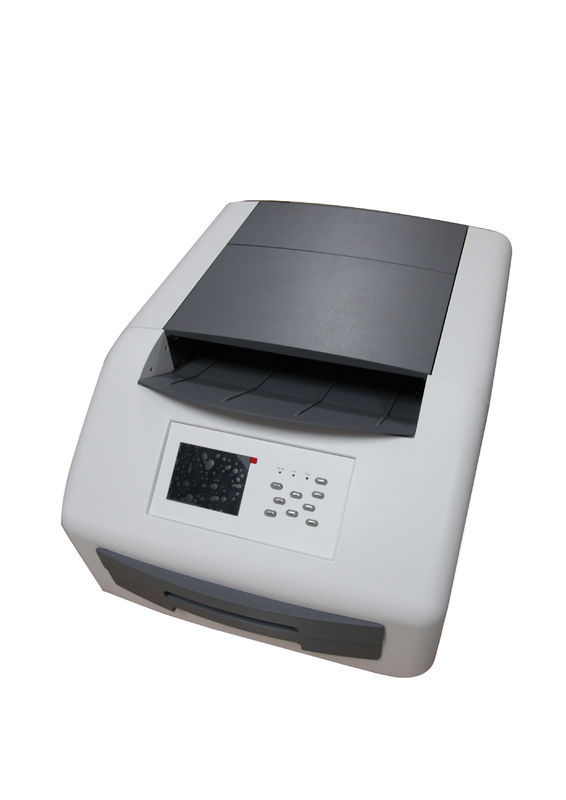

     KND-8900 medical film printer is a kind of thermal imaging printer
         which can output the imagine in dicom form from internet

equipment characteristics and

 technical parameters

printing technique direct thermal imaging(easy daylight loading)
geometrical 320dpi (12.6pixel/mm)
film throughput 60sheets/hour(14*17), 90sheets/hour(8*10)
resolution 12bit(4096 gradation)
film supply tray 2 supply trays,100 sheets per supply tray
film output tray 1 output tray, 50 sheets per output tray
film size 8*10inch,14*17inch,and any size between them
film type medical thermal film (blue or clear base)
film input cassette

all the film prepackaged in factory sealed

input cassette

port 10/100base-T Ethemet(RJ-45)
interface dicom
image format dicom
image quality use the built-in densitometer automatic calibration
image control contrast/grayscale/polar/ratate/saturation/scale
control panel

light background LCD display,display online,

alarm,fault and state

key switch power supply and menu navigation button
processor intel
internal memory 2 GB
disk capacity 320 GB
power requirements auto ranging 100-240V~50/60 HZ
weight 40kg
size (mm*mm*mm) 410*566*726
work temperature 15-30
work humidity 10%-70%
optimum temperature 22.2
humidity 10%-80%
storage temperature .-22 to 50

ADD: wenyan town,xiaoshan district of hangzhou,

zhejiang province,china

TEL: +86-571-82202229
FAX: +89-571-87214725
