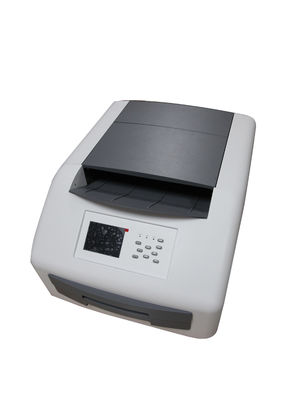

Second hand x ray machine Thermal Printer Mechanisms , compatible with thermal film

Second hand x ray machine Thermal Printer Mechanisms , compatible with thermal film

  • Second hand x ray machine Thermal Printer Mechanisms , compatible with thermal film
Second hand x ray machine Thermal Printer Mechanisms , compatible with thermal film
Product Details:
Place of Origin: china
Brand Name: KONIDA
Certification: CE, ISO13485
Model Number: KND-8900
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 5000dollar
Packaging Details: CARTON PACKAGE
Delivery Time: in one week
Payment Terms: T/T in advance, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Contact Now
Detailed Product Description
High Light:

dry thermal printers


thermal imaging equipment

 thermal film printer machine

thermal camera medical

second hand x ray machine


disk capacity 320 GB

control panel light background LCD display

100 sheets per supply tray


Broke-up the Monopoly of foreign imager

The launching of KND-8900 Dry Medical Imager broke-up the long-term monopoly of medical imagers and

 films by several multinational corporations. Konida, a famous China domestic brand provides you high quality

 medical imaging solutions with the Imager and Dry Medical Film as always.


With the most environmental direct thermal printing method

With the most environmental direct thermal printing method, do not use any chemical liquid during the

imaging. No silver halide or other metal components in Konida dry film. Before, during and after printing

 process, does not produce any chemical waste and toxic substances or gas. Film disposed as household

 waste instead of industrial.


With high-resolution imaging

The thermal imaging layer on the film was consist of microcapsules which were formed by nano raw material,

with high resolution thermal head, the final image resolution is 320dpi


Applicable to multi-sizes lucky dry medical film

KND-8900 imager was equipped with 2 magazines, each magazine accommodates 100 films, and the imager

 is applicable 4 sizes film: 14*17inch,11*14inch,10*12inch and 8*10inch.


Daylight operating

With unique formulation technology, Konida dry medical film loading and printing can be carried out in daylight

 without darkroom,convenient operation will reduce the technician’s labor strength.


Chinese and English optional display

The operator could chose Chinese or English display on the 5 inch LCD screen, make KND-89001imager

operation easy and convenient.


     KND-8900 medical film printer is a kind of thermal imaging printer
         which can output the imagine in dicom form from internet

equipment characteristics and

technical parameters

printing technique direct thermal imaging(easy daylight loading)
geometrical 320dpi (12.6pixel/mm)
film throughput 60sheets/hour(14*17), 90sheets/hour(8*10)
resolution 12bit(4096 gradation)
film supply tray 2 supply trays,100 sheets per supply tray
film output tray 1 output tray, 50 sheets per output tray
film size 8*10inch,14*17inch,and any size between them
film type medical thermal film (blue or clear base)
film input cassette all the film prepackaged in factory sealed input cassette
port 10/100base-T Ethemet(RJ-45)
interface dicom
image format dicom
image quality use the built-in densitometer automatic calibration
image control contrast/grayscale/polar/ratate/saturation/scale
control panel

light background LCD display,display online,alarm,

fault and state

key switch power supply and menu navigation button
processor intel
internal memory 2 GB
disk capacity 320 GB
power requirements auto ranging 100-240V~50/60 HZ
weight 40kg
size (mm*mm*mm) 410*566*726
work temperature 15-30℃
work humidity 10%-70%
optimum temperature 22.2℃
humidity 10%-80%
storage temperature .-22 to 50℃
