| Product Usage |

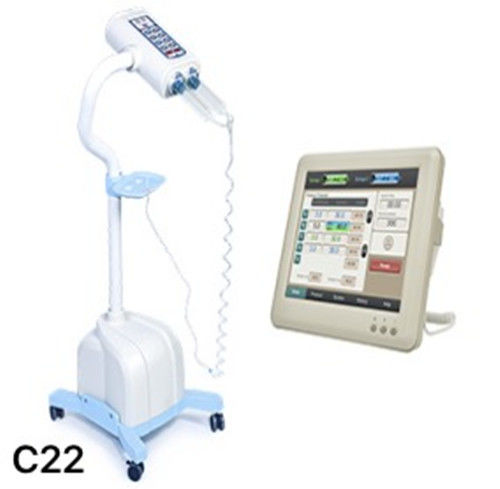

| It is used to inject contrast agent, saline or drugs during CT enhanced scanning |
| Safety |
| Precisely control the injection speed and dose |
| Remote control push injection to reduce harmful radiation to the operator |
| Make sure to exhaust air before pushing |
| Easy to use |
| Large true color display screen, graphical and text interface is intuitive and eye-catching |
| On-screen control is straightforward and simple |
| The rack can be moved flexibly and placed in the most suitable position |
| The application of brine beam technology has a very significant effect |
| Improve the density of the enhancer to make the enhancement signal stronger, which can reduce the bolus dose, save the contrast agent and reduce the patient's intake |
| Reduce artifacts and provide more realistic images |
| Contrast agents in extension tubes and blood vessels are used |
| Technical Parameter |
| Power requirements: AC 198～242V, frequency 50/60Hz, 200VA |
| Pressure limit: 50～350psi (345～2415kPa), step size 1psi (1kPa) |
| Injection rate: 0.1～10.0ml/sec., step length 0.1ml/sec |
| Syringe: 200ml disposable syringe |
| Injection dose: 0.1ml ~ syringe volume |
