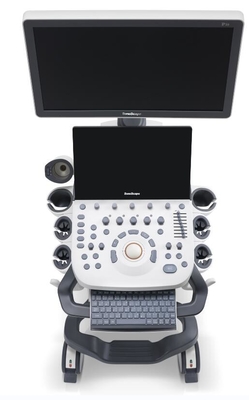

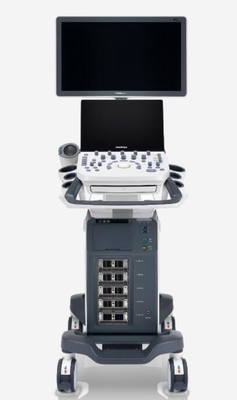

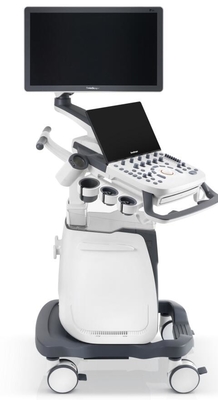

P20 Digital Color Doppler Ultrasound System
General Specification
1.1 Application
l Abdomen
l Cephalic
l Pediatric
l Gynecology/Obstetrics
l Pelvic Floor
l Cardiology
l Peripheral vascular
l Small parts
l Musculoskeletal
l Transvaginal
l Transrectal
1.2 Available Probe
l Convex array probe
l Linear array probe
l Phased array probe
l Volume probe
1.3 Imaging Mode
l B
l THI/PHI
l M
l Anatomical M
l Color M
l CFM
l PDI/DPDI
l PW
l CW
l TDI
l TDI+PW
l TDI+M
l 3D/4D
1.4 Function and Configuration
l 5-band adjustable frequency in B mode
(fundamental wave and harmonic wave)
l μ-scan
l Compound imaging
l LGC (2 bands)
l Tissue specific index
l Image rotation
l Trapezoid Imaging
l HPRF
l Simultaneous mode (Duplex/Triplex)
l PW Auto Trace
l Auto IMT
l Auto NT
l Auto EF
l AVC Follicle
l Scr-Zoom
l B mode panoramic imaging
l Color panoramic imaging
l Biopsy guide
l Vis-Needle
l Freehand 3D
l 3D/4D
l S-Live
l S-Depth
l C-xlasto
l ABD Contrast with TIC
l ECG
l S-Guide
l Auto Face
l Stress echo
l Tei index
1.5 Available Language
l Software: English, Simplified Chinese, Spanish,
Russian, French, Italian, German, Norwegian,
Portuguese
l Keyboard: English, Simplified Chinese,
Spanish, Russian, French, Italian, German,
Norwegian, Portuguese
l User manual: English, Simplified Chinese,
Polish, German, Russian, French, Spanish,
Italian, Portuguese
2 Physical Specification
2.1 Size and Weight
l Width: approx. 526 mm
l Depth: approx. 751 mm
l Height: approx. 1110 mm (when the control
panel and monitor are adjusted to the lowest
position); 1680 mm (when the control panel and
monitor are adjusted to the highest position)
l Weight: approx. 86 kg
2.2 Monitor
l 21.5-inch medical high-resolution monitor
l Resolution: 1920×1080
l Viewing angle: 178° (horizontal), 178°
(vertical)
l Swivel angle: ±45°
l Up and down angle: 25° (up) to 90° (down)
l Contrast and brightness: adjustable
l Frequency: 60 Hz
l Monitor arm
ü Swivel angle: ±53°
ü Swivel angle between upper arm and lower
arm: left/right, ± 112°; height difference: 0 -
100 mm
2.3 Touch Screen
l 13.3-inch medical high-resolution touch screen
l Resolution: 1920×1080
l Viewing angle: 160°(left and right), 160°(up
and down )
l User preset for parameter layout
l Angle of inclination adjustable: ≥10°
l Brightness and contrast: adjustable
l Available to touch with latex gloves
l Anti-glare protection film
2.4 Control Panel
l User-oriented design
l Backlight design: panel buttons
l Multiple defined-keys
l TGC: 8 levels slider controls
l Adjustable sensitivity of trackball
l Pull-out keyboard
l Promotion and demotion difference: 0 - 230 mm
l Swivel angle: ±40°
2.5 Speaker
l Hi-Fi Speaker
l Frequency respond: 200 Hz -12 kHz
2.6 Caster
l Diameter: 5 inches
l Specification: all the 4 casters can be
independently locked
2.7 Probe Port and Probe Holder
l Probe ports: 5 (4 ports are activated and
interchangeable, 1 port is inactive)
l Pencil probe port: 1
l Probe holder: 4
l Coupling gel holder: 2
l Cable hanger: 2
l Coupling gel heater: 1
2.8 Power
l Power supply: 100-127V～/220-240V～, 2.7 -
1.1A, 50/60Hz
l Power Consumption: 500VA
l Built-in battery (charging time ≤ 9 h; power
supply time ≥ 1.5 h)
2.9 Working Environment
l Temperature: +10°C to +40°C
l Relative humidity: 30% - 75% RH (no
condensation)
l Atmospheric pressure: 700 hPa - 1060 hPa
l System noise: ≤ 44 dB
2.10 Storage and Transportation
Environment
l Temperature: -20°C to +55°C
l Relative humidity: 20% - 90% (no
condensation)
l Atmospheric pressure: 700 hPa - 1060 hPa
3 Annotation and Bodymark
l Annotation: text annotation and arrow
annotation
l Manual text annotation by touch screen
l Front size of text annotation: adjustable
l Initial position
l Preset text annotation
l Arrow direction: adjustable
l All exam applications included
l Body marks: ≥ 122
l Body marks classified by specific exam types,
and position adjustable
4 Monitor Information
l Manufacturer logo
l Hospital name
l System date and time
l Probe and exam item
l MI and TIS
l Operator
l Probe icon
l Patient ID, name and date of birth
l Gender and GA
l Exam type icon
l Tissue temperature display (specified probe)
l Depth scale and focus position
l Image parameters
l Thumbnail
l Clipboard
l Screen saver
