USB 3.0 Digital Color Doppler Ultrasound System P40 Medical Monitor

Brand Name:	kenid
Model Number:	P40
MOQ:	1SET
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Monitor:

21.5" Medical High Resolution Monitor

Screen:

13.3" High Resolution Touch Screen

HD:

USB 3.0 / Hard Disk 500G

Software:

μ-Scan (2D Speckle Reduction Technology)

Accessories:

Keyboard Water-resistant Cover

Hardware：:

The Fifth Active Transducer Port (Must Be Configured Before Delivery)

Battery:

Built-in Battery

Drive:

Build-in DVD Drive (Must Be Configured Before Delivery)

Packaging Details:

carton

Highlight:

USB 3.0 Doppler Ultrasound System

Medical Monitor Doppler Ultrasound Machine

Product Description

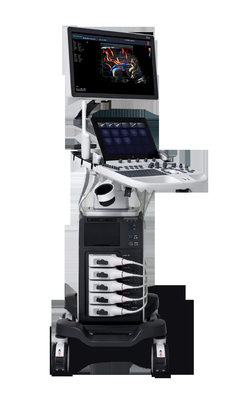

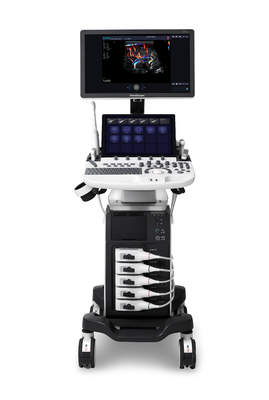

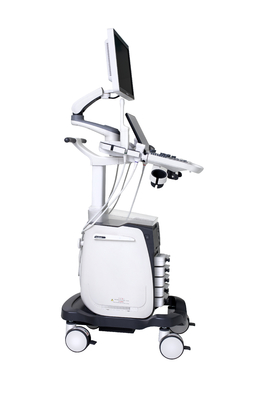

P40 Digital Color Doppler Ultrasound System

Size and Weight

l Width: approx. 586 mm

l Depth: approx. 743 mm

l Height: approx. 1085 mm to 1680 mm

l Weight: approx. 83.7 Kg

Monitor

l Size: 21.5 inch medical high resolution monitor

l Resolution: 1920*1080

l Viewing angle: 178°(horizontal), 178°(vertical)

l Swivel angle: ± 40°

l Up/down angle: -90° to 25°

l Contrast and brightness: adjustable

l Frequency: 60Hz

l Monitor arm

-- Swivel angle: ± 53°

-- Swivel angle between upper arm and lower

arm: left/right, ± 112°

-- Swivel angle between lower arm and control

panel: left/right, ± 53.3°

Viewing angle: 160° (horizontal), 160°

(vertical)

l Angle of inclination (adjustable): ≥10°

l Brightness and contrast: adjustable

l Compatible with latex gloves

l User-defined parameter preset layout

l Anti-glare protection film

Touch Screen

l Size: 13.3 inch medical high resolution monitor

l Resolution: 1920 × 1080

Software:

B ( 2B & 4B ) Mode

M Mode

Color Doppler Flow Imaging

Power Doppler Imaging / Directional Power Doppler Imaging

Pulse Wave Doppler Imaging

Continuous Wave Doppler Imaging

High Pulse Repetition Frequency

Multi-beam Technology

Tissue Harmonic Imaging

Pure Inversion Harmonic Imaging

LGC (Lateral Gain Compensation)

μ-Scan (2D Speckle Reduction Technology)

Spatial Compound Imaging

Zoom ( Pan-Zoom / HD-Zoom )

Scr-Zoom ( One-Key Full Screen Display )

B Mode Panoramic Imaging

Color Panoramic Imaging

Trapezoid Imaging

Widescan: Convex Extended

One-Key Optimization (Auto Optimization for 2D / Color / PW)

Auto NT

Auto EF

Freehand 3D

Static 3D / 4D (Must be Configured with Volumetric Probe)

S-Live (S-Live / S-Live Silhouette)

S-Guide

S-Live

DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R

Accessories:

Keyboard Water-resistant Cover

AC Power Cord (Specify the Standard: European / American / British / Chinese / South African / Brazilian)

Ground Lead

Transducers:

Convex Array 3C-A

Endovaginal 6V3
