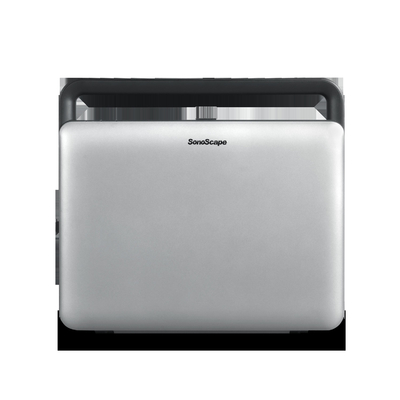

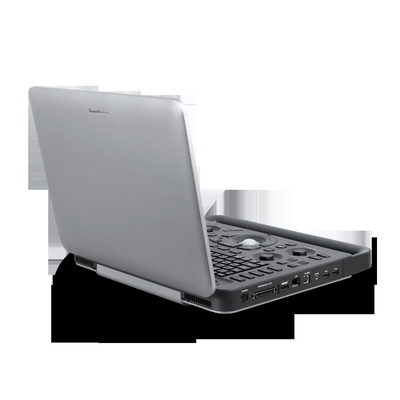

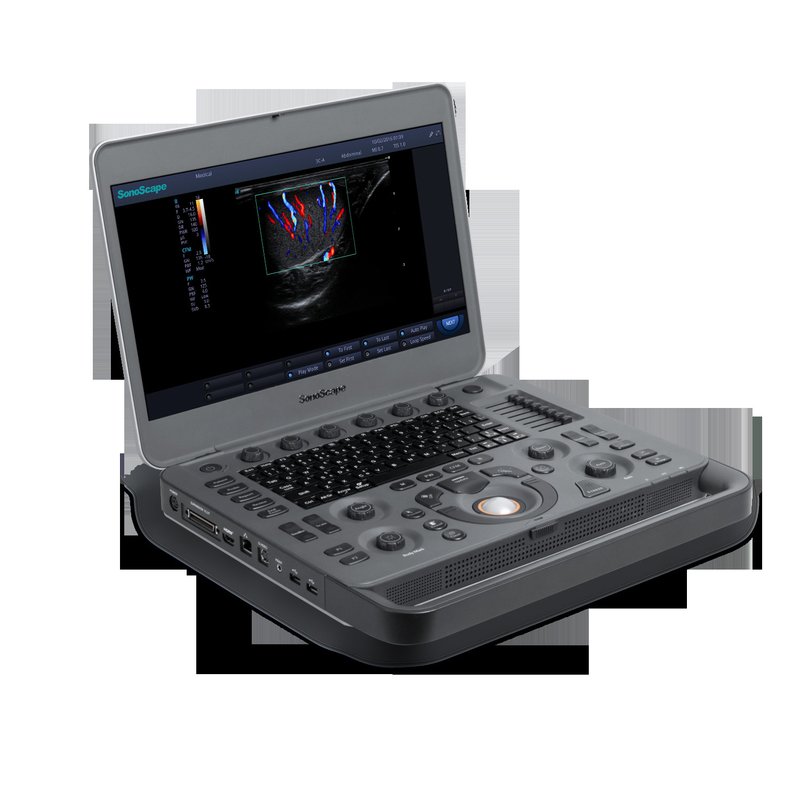

X3 Diagnostic Color Doppler System Linear Extended

X3 Diagnostic Color Doppler System Linear Extended

  • X3 Diagnostic Color Doppler System Linear Extended
  • X3 Diagnostic Color Doppler System Linear Extended
  • X3 Diagnostic Color Doppler System Linear Extended
X3 Diagnostic Color Doppler System Linear Extended
Product Details:
Place of Origin: CHINA
Brand Name: kenid
Certification: CE,ISO
Model Number: X3
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Monitor: 15.6" Medical High Resolution Monitor HD: USB 2.0 / Hard Disk 500 G
DICOM: DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R Widescan: Linear Extended
Software: ECG (Software: Must Be Configured With I/O Docking Extender ) Accessories: Ground Lead
High Light:

Diagnostic Color Doppler System

,

Linear Extended Color Doppler System

X3 Diagnostic Color Doppler System


Hardware:
X3 Main Unit
15.6" Medical High Resolution Monitor
One Transducer Port
USB 2.0 / Hard Disk 500 G
Standard Battery
WiFi Module
Adaptor
Software:
B ( 2B & 4B ) Mode
M Mode
Color Doppler Flow Imaging
Power Doppler Imaging / Directional Power Doppler Imaging
Pulse Wave Doppler Imaging
Continuous Wave Doppler Imaging
B / C Dual Live
Simultaneous Mode (Duplex)
Simultaneous Mode (Triplex)
Tissue Harmonic Imaging
Pure Inversion Harmonic Imaging
TGC (Time Gain Compensation)
LGC (Lateral Gain Compensation)
Dynamic Multi-beam Technology
2D Steer
Spatial Compound Imaging
B Mode Panoramic Imaging
Widescan: Linear Extended
Widescan: Convex Extended
μ-Scan (2D Speckle Reduction Technology)
Tissue Specific Imaging
SR Flow
One-Key Optimization (Auto Optimization for 2D / Color / M / PW / CW)
Zoom ( Pan-Zoom / HD-Zoom )
Scr-Zoom ( One-Key Full Screen Display )
Auto Trace
Auto IMT
TEI Index
ECG (Software: Must be Configured with I/O Docking Extender )
Sono-Help (Scanning Tutorial)
Vis-Needle (Needle Visualization Enhancement)
Standby Mode
Show Gallery
DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R
Accessories:
Ground Lead
AC Power Cord (Specify the Standard: European / American / British / Chinese / South African / Brazilian)
Transducers:
Linear Array L741

Convex Array 3C-A


X3 Optional Configurations
4205-03006CFM M Mode
4205-03010Tissue Doppler Imaging
4205-03096Tissue Doppler Imaging with M Mode
4205-03005Anatomic M Mode
4205-03074Prospective Saving
4205-03100Lung Mode(Only for CE)
4205-03101Auto Pleural Line(Only for CE)
4205-03102Auto B Line(Only for CE)

Physical Specification
 Size (L×W×D): 378mm×339 mm×60.5mm
(including mat); 378mm×339 mm×56.5mm
(without mat)
 Weight: Approx. 4.4kg (including battery)
Approx. 3.89kg (without battery)
 Monitor: 15.6’’ Widescreen and
High-Resolution Color LCD monitor, LED
backlight, anti-flickering and swivel (with
adjustable open angle 0°-180°)
 Probe port: 1, extendable

Safety Standard
 Comply with IEC60601-1, Class I BF,
 Comply with IEC60601-1-2, Group 1, Class B
 Comply with IEC60601-2-37

Environmental Requirements
 Operation Environment
 Temperature: 0°C to +40°C
 Relative Humidity: 30% to 85% (no
condensation)
 Atmospheric pressure: 700 to 1060hPa
 Transportation and Storage Environment
 Temperature: -20°C to +55°C
 Relative humidity: 20%- 90% (no
condensation)
 Atmospheric Pressure: 700 to 1060hPa
 Power Supply
 100-240V~, 1.5-0.75A
 Frequency: 50/60Hz

Optional Probes
 Phased Array Probes
 3P-A (Frequency: 1.0-6.0MHz, sweep
sector: 90°)
 Linear Probes
 L741 (4.0-16.0MHz)
 Convex Probes
 3C-A (1.0-7.0MHz)
 C613 (4.0-13.0MHz)
 Endocavity Convex Probe
 6V1 (3.0-15.0MHz)
