Low Fog 14in * 17in Medical Imaging Dry X-ray Transparency Thermal Printer Film
Features
Low fog
High sharpness
High max density
Bright tone
Compatible with thermal printers.

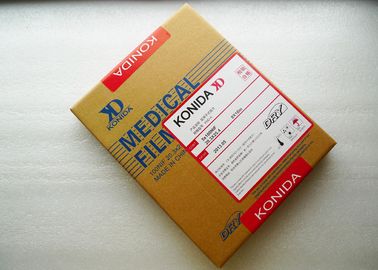

Konida Medical x-ray Dry Film (KND-A/F)
Konida Medical x-ray Dry Film (KND-A/F) has image layer and protect layer on different side of bluish polyester bases, and there are no sensitive silver halide in both layer. The film is fit for thermal printer to print digital image which is processed and stored in the computer, to attain the enhanced x-ray image quality. Compared to traditional silver halide processing, the procedure is more convenient and the speed of processing is faster. Meanwhile, it reaches to the goal of environment protection because the whole procedure is free of the Chemicals.
Safe light
It can be processed under room light condition since the film is not sensitive to light.
Processing
The product can be directly printed with thermal printers to get ideal image. The print conditions should be tested when using in other printer types.
Storage
Please store the film in cool and dry place without dust. Keep away from direct sunlight, acid or alkaline gas. Details as follows
1. Temperature and humidity,temperature 10℃~23℃, humidity 30%~65%RH, keep away from the heat resource.
2. Gas,There are no hydrogen sulfide, ammonia, sulfur dioxide, formaldehyde, and any other alkaline gas, etc.
3. Pile,Please keep film upright to avoid the bad influence caused by pressure.
Period of validity
The period of validity is 24 months under above conditions.
Conditions of usage
The best condition of usage as following
Temperature 18℃~24℃, humidity 50%~65%RH.
Notes
1. Store the film under the conditions specified above.
2. Take the film out of the cool place and place the film with the package in the place where the film will be used for at least 4 hours, to avoid the steam concentrate on the film and damage the film.
3. It should be careful to handle the film, don’t crash, fold, distort and rub the film, don’t touch the film with wet hand.
4. Dealing with the waste film should obey the local law and regulations.
Package and Size
1.Konida Medical film type, KND-A, Suitable for AGFA 5300,5302,5500,5502,3000.
Name |
Model type |
Size |
Sheets/box |
Boxes/case |
|
Konida medical dry film |
KND-A |
8in×10in |
20cm×25cm |
100 |
5 |
10in×12in |
25cm×30cm |
100 |
5 |
||
11in×14in |
28cm×35cm |
100 |
5 |
||
14in×17in |
35cm×43cm |
100 |
5 |
2.Konida Medical film type, KND-F,suitable for Fuji 3000,2000,1000.
Name |
Model type |
Size |
Sheets/box |
Boxes/case |
|
Konida Medical dry film |
KND-F |
8in×10in |
20cm×25cm |
100 |
5 |
10in×14in |
28cm×35cm |
100 |
5 |
||
14in×17in |
35cm×43cm |
100 |
5 |
