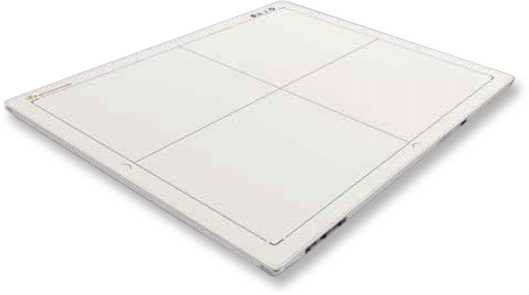

14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility

Brand Name:	KEIND
Model Number:	KND-FP-14X17
MOQ:	1set
Payment Terms:	T/T,Western Union,MoneyGram,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Detector Technology:

Amorphous Silicon

Scintillator:

CsI

Active Area (inch):

14x17

Pixel Matrix:

2304 × 2800

Pixel Pitch (µm):

150

Spatial Resolution (lp/mm):

3.3

AD Conversion (bit):

Battery Autonomy (h):

Interface:

DICOM Compatible, USB, Ethernet

WIFI:

2.4G And 5G, IEEE802.11 A/b/g/n/ac

Trigger Mode:

AED (Optional) / Software

Internal Image Storage:

200 Full Size Images

Full Image Time (s):

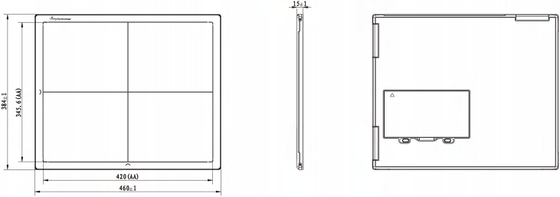

Dimensions (mm³):

384 × 460 × 15

Weight (kg):

3.3

Static Loading:

150kg Uniformly

Ingress Protection:

IPX1

Operating Temperature (°C):

5 ~ 35

Storage & Transport Temperature With Package (°C):

-20 ~ 55

Operating Humidity (% RH):

10 ~ 90 (Non-Condensing)

Storage & Transport Humidity With Package (% RH):

5 ~ 95 (Non-Condensing)

Highlight:

14x17-inch Active Area Flat Panel Detector

DICOM Compatible Digital Radiography Detector

Amorphous Silicon Technology DR Detector

Product Description

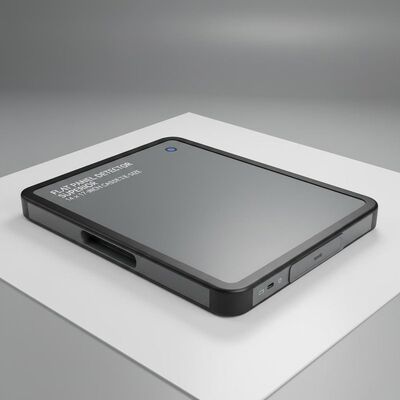

FLAT PANEL DETECTOR SUPERIOR 14 * 17-INCH CASSETTE-SIZE

This high-performance flat panel detector features a standard 14*17-inch cassette size, providing superior image quality and reliability for medical imaging applications. Designed for compatibility with existing systems while delivering advanced digital performance.
