Digital Radiography System
Created with Pixso.

17x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility

17x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility

Brand Name: KEIND
Model Number: KND-FP-17x17
MOQ: 1set
Payment Terms: T/T,Western Union,MoneyGram,D/P,D/A
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Detector Technology:
Amorphous Silicon
Scintillator:
CsI
Active Area (inch):
17x17
Pixel Matrix:
3072 × 3072
Pixel Pitch (µm):
139
Spatial Resolution (lp/mm):
3.6
AD Conversion (bit):
16
Data Transmission:
GigE
Interface:
DICOM Compatible, USB, Ethernet
WIFI:
2.4G And 5G, IEEE802.11 A/b/g/n/ac
Trigger Mode:
AED (Optional) / Software / Prep
Preview Image Time (s):
3
Full Image Time (s):
5

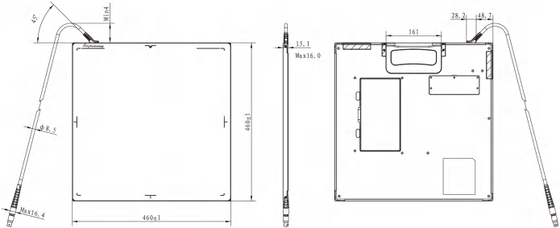

Dimensions (mm³):
460 × 460 × 15
Weight (kg):
4
Power Dissipation (W):
30
Operating Temperature (°C):
5 ~ 35
Storage & Transport Temperature With Package (°C):
-10 ~ 55
Operating Humidity (% RH):
30 ~ 80 (Non-Condensing)
Storage & Transport Humidity With Package (% RH):
10 ~ 90 (Non-Condensing)
Highlight:

17x17-inch Active Area Flat Panel Detector

,

Amorphous Silicon Technology Flat Panel Detector

,

DICOM Compatibility Digital Radiography Detector

Product Description

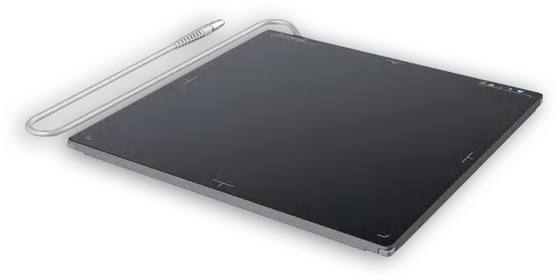

17x17-inch Active Area Flat Panel Detector
17x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility 0 This advanced flat panel detector features a 17x17-inch active area and utilizes amorphous silicon technology for superior imaging performance. The detector is fully DICOM compatible, ensuring seamless integration with medical imaging systems and workflows.
Key Features
  • 17x17-inch active imaging area
  • Amorphous silicon technology for high resolution
  • Full DICOM compatibility
  • Superior image quality and performance
  • Seamless integration with medical imaging systems
