100ml Syringe Single AC198V CT Injection System Computer Controlled

1 set
MOQ
$2 per set
Price
100ml Syringe Single AC198V CT Injection System Computer Controlled
Features Gallery Product Description Request A Quote
Features
Specifications
Electrical Requirements: A.c.198~242V, 50/60Hz, 200VA
Operation Interface: Selectable In English, French, German And Chinese
Flow Rate: 0.1 ML/sec. To 10 ML/sec. In 0.1 ML/sec. Increments
Syringe Capacity: 100ml For Zenith-C10; 200ml For C20
Volume: 0.1 Ml To Syringe Capacity In 0.1 Ml Increments
High Light:

AC198V CT Injection System

,

100ml Syringe CT Injection System

Basic Infomation
Place of Origin: China
Brand Name: Kenid
Certification: CE
Model Number: C20
Payment & Shipping Terms
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per month
Product Description

Single CT Contrast Media Injector

Characteristic
CT injector is controlled by a computer system. It takes advantage of specialized syringes and other accessories, so the cost of injection is very low. The delivery rate and volume satisfy all the criteria required by enhanced CT scan.
●The highest delivery rate: 9.9ml/s, the lowest delivery rate: 0.1ml/s. The large range of rate from 0.1ml/s to 9.9 ml/s satisfies all of the requirements for any enhanced CT scan. One to four phases injections meet a variety of CT injection’s need.

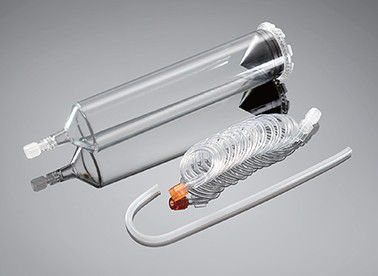

●Large-size disposable syringe meets various requirements for volume of any enhanced CT scan.
●The highest pressure limit increase the safety of process
●Relay input/output interface connects to different CT scan facilities in the safest manner.

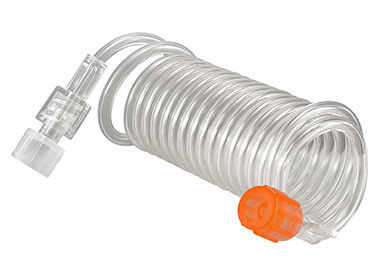

●Small diameter pipe tube reduces the waste of contrast agent, and synonizes the delivery of contrast agent and scan.

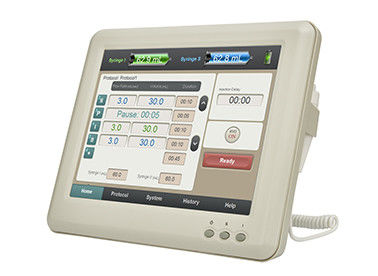

●Long-distance control box enables the user to monitor it in either control room or scanning room.


Specification
Flow Rate: 0.1 to 10 ml/sec in 0.1 ml/sec increments
Pressure Limits: Programmable from 50 to 350 psi in 1 psi increments
Injection Capabilities: 1 to 8 phases

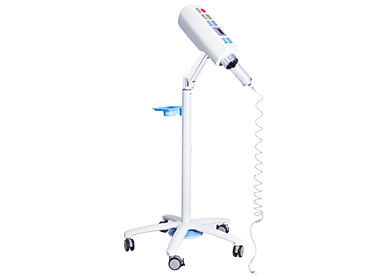

100ml Syringe Single AC198V CT Injection System Computer Controlled 0

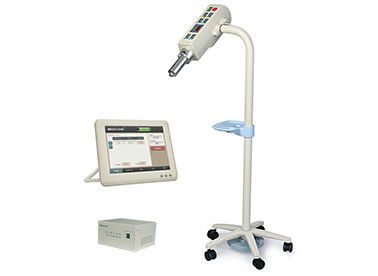

100ml Syringe Single AC198V CT Injection System Computer Controlled 1

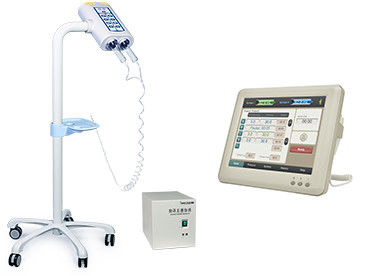

100ml Syringe Single AC198V CT Injection System Computer Controlled 2
