Color Doppler Diagnostic Ultrasound System Build In ECG Module P60

Brand Name:	kenid
Model Number:	P60
MOQ:	1SET
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Monitor:

21.5" High Resolution LED Color Monitor

Screen:

13.3" High Resolution Touch Screen

Pannel:

Height Adjustable And Rotatable Operation Panel

PORT:

Five Active Probe Ports

Port:

One Pencil Probe Port

Module:

Build-in ECG Module (Including Hardware And Software)

Software:

Static 3D / 4D (Must Be Configured With Volumetric Probe)

DICOM:

DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R

Accessories:

Keyboard Water-resistant Cover

Packaging Details:

carton

Highlight:

Color Monitor Diagnostic Ultrasound System

ECG Module Diagnostic Ultrasound System

Product Description

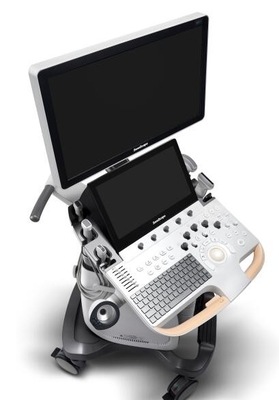

P60 Color Doppler Diagnostic Ultrasound System

Size and Weight

 Width: approx. 550 mm

 Depth: approx. 740 mm

 Height: approx. 1360 mm (the height is

measured when the control panel and the

monitor are adjusted to the lowest position)

 Weight: approx. 84 Kg

Monitor

 Medical high resolution monitor

Resolution: 1920*1080

 Viewing angle: 178°(horizontal), 178°(vertical)

 Swivel angle: ±40°

 Up/down angle: -90° to 25°

 Contrast and brightness: 0 - 100 adjustable

 Monitor Arm

-- Swivel angle between upper arm and lower

arm: ≥ 100°, horizontal

-- Swivel angle between lower arm and control

panel: ≥ 50°, horizontal

-- Extend direction: up/down and left/right

Touch Screen

 Medical high resolution monitor

 Resolution ratio: 1920×1080

 Viewing angle: 160° (horizontal), 160°

(vertical)

 Inclination angle: adjustable

 User-defined parameter preset layout

Control Panel

 User-oriented design

 Backlight design: panel buttons

 Multiple defined-keys

 TGC: 8 levels slider controls

 Trackball sensitivity: adjustable

 Adjustable height range: 0 - 230mm

 Full-sized backlit keyboard on the panel

Hardware:

P60 Main Unit

21.5" High Resolution LED Color Monitor

13.3" High Resolution Touch Screen

Height Adjustable and Rotatable Operation Panel

Five Active Probe Ports

One Pencil Probe Port

Build-in ECG Module (Including Hardware and Software)

Wifi Module

Hard Disk 1T

Software:

B (2B & 4B) Mode

M Mode

Anatomic M Mode

Color M Mode

Color Doppler Flow Imaging

Power Doppler Imaging / Directional Power Doppler Imaging

Tissues Doppler Imaging

Pulse Wave Doppler Imaging

Continuous Wave Doppler Imaging

High Pulse Repeat Frequency

Tissue Harmonic Imaging

Pure Inversion Harmonic Imaging

Compound Imaging

Tissue Specific Imaging

Image Rotation

μ-Scan: Speckle Reduction Technology

SR Flow

Simultaneous Mode (Triplex)

FreeHand 3D Imaging

B Mode Panoramic Imaging / Color Panoramic Imaging

Lateral Gain Compensation

Trapezoid Imaging

Widescan Imaging

Biopsy Guide

C-xlasto (Strain Elastography)

Needle Visualization Enhancement (VIS-Needle)

Bladder Volume Measurement

Zoom (Pan-Zoom / HD-Zoom / Scr-Zoom)

TEI Index

PW Auto Trace

Auto IMT

Auto EF

Auto OB: BPD / HC / AC / FL / NT / HL

S-Guide

Build-in User Mannual (Help)

Sono-help (Scanning Tutorial)

DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R
